Wiseman mechanical ventilation station

Construction of the Wiseman mechanical ventilation station

Project summary

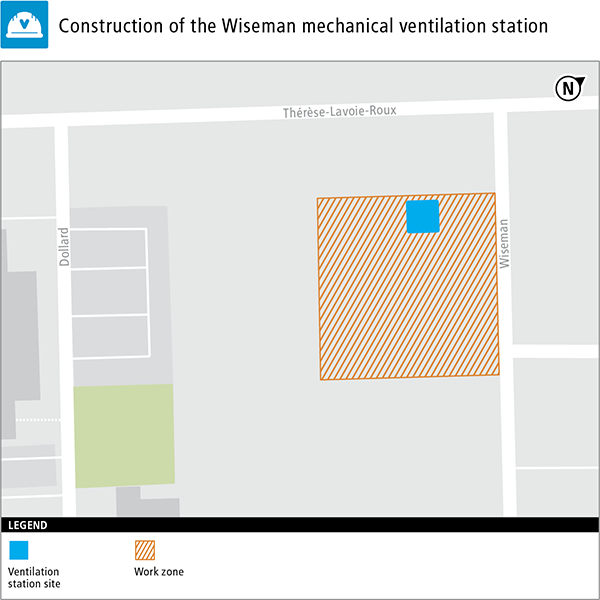

The construction of the Wiseman mechanical ventilation station, located on the vacant lot between Dollard Avenue and Wiseman Avenue, is part of our program to refurbish our métro facilities and equipment. The new station will replace the old Wiseman MVS, which has reached the end of its service life.

Duration of the work: January 2022 to fall 2024

Description of the work: Construction of a new mechanical ventilation station

Métro impacts: No

Bus impacts: No

Stay informed

Stay informed of the project’s progress and other events by signing up for the electronic newsletter

Impact on local residents

Texte important

Upcoming overnight work

Some construction work for the Wiseman mechanical ventilation station will exceptionally have to take place at night. Since the work involves drilling inside the métro tunnel, it can only be done when the métro is not in operation.

The work is expected to take five to seven nights and will be done on weekdays, between December 5 and 13, 2022 1. There will be no overnight work on Friday night or Saturday night.

 Most of the work will be carried out within the enclosed worksite, which is equipped with a noise wall. However, you may still hear some noise. We understand the impact that this work may have on neighbourhood noise levels. Rest assured that we are taking all measures necessary to reduce disturbances. We have also obtained all the required authorizations from the borough.

  1. In the event of operational constraints or inclement weather, the work may be delayed. If this is the case, we will post a notice on this page and inform you via electronic newsletter.

Work suspended during the holidays

The worksite will be inactive from December 24, 2022, to January 8, 2023. It will reopen on Monday, January 9, 2023.


We will be digging a vertical shaft to a depth of 15.1 metres into the bedrock, then tunnelling horizontally for 4.7 metres. In total, 5511 cubic metres of bedrock will be removed from the site. After that, we will install a waterproofing membrane over the surface of the tunnel to protect it from water infiltrations. Next comes the concrete, which will form the tunnel and underground building. Finally, the fans and their accompanying electrical equipment will be installed in the building. All of these steps vary in terms of duration and impact, such as noise and dust.

Excavation
Different methods may be used for the excavation work. Once a method has been chosen, information will be made available on our website and sent out in the e-newsletter.

Dust
Anti-dust sheets will be installed on the worksite partitions and trucks will be cleaned before leaving the worksite.

Noise

  • Noise management for the project will be overseen by experts.
  • When possible, electric cranes and compressors will be used to reduce noise and CO₂ emissions.
  • Construction noise will be minimized by partitions of varying heights made of wood and filled with acoustic insulation. These noise walls will be placed strategically around the edge of the worksite during different work phases, based on noise simulations produced by an expert company. The walls will reduce the noise caused by the worksite.

Schedule
Construction will be carried out according to the schedule authorized by municipal by-laws, from 7:30 a.m. to 7:00 p.m. on weekdays.


Work extended on Wiseman Avenue

Work on Wiseman Avenue will continue until mid-July 2022. We discovered that an existing sewer pipe, located beneath the street, is damaged. We will need to work with the City of Montréal teams to carry out unanticipated repairs. Unfortunately, this requires us to extend the street closure. As a result, the section of the noise wall that we dismantled to carry out this work will be reinstalled in mid-July.

Worksite improvements

As you have most likely noticed, we painted the partitions that surround the worksite and added a decorative mural. This initiative aims to make the area around the worksite more enjoyable for the neighbourhood and passers-by and to reduce the visual impact of any future graffiti. The noise wall along Wiseman Avenue considerably reduces the noise level generated by the worksite.

Ongoing worksite activity

Please note that the work will continue over the construction holiday. Depending on the nature of the ongoing work, some activities are allowed to continue during this period, as authorized by the Commission de la construction du Québec.



Street closure on Wiseman Avenue

As of June 6, 2022, we will start working on a section of Wiseman Avenue, outside the worksite area. Wiseman will be closed to traffic between Thérèse-Lavoie-Roux and Manseau avenues. Signage will be set up to direct pedestrians, cyclists and drivers during this closure.

What will the work involve?
We will need to dig a trench in the ground to install and hook up the water conduit and move the blue fire hydrant that is located at the edge of Place Alice-Girard.

The street closure on Wiseman Avenue will end by June 24, 2022. More work will need to be carried out this summer to connect the blue fire hydrant. We will keep you informed.

The blue fire hydrant must be relocated before the Centre de services scolaire Marguerite-Bourgeoys begins construction of the new school.

What are these fire hydrants for?

These are STM fire hydrants, and every one of them is connected to the métro’s fire safety equipment. There are more than 530 blue hydrants in Montréal.

These blue fire hydrants are actually called “fire mains.” In case of fire, they allow us to increase the water flow to extinguish it.

We have finished several stages of work at the Wiseman mechanical ventilation station site. The contractor has set up worksite facilities, and piles have been installed, which is a step that must be completed before excavation can start.

We can now begin excavation. The contractor will largely carry out this work using mechanical equipment. Crews will first dig out the overburden (the surface layer of soil), then excavate the bedrock. This step is expected to continue until spring 2023.

As you have most likely noticed, the worksite is surrounded by noise barriers. This will reduce the noise generated by the machinery and activities to limit the inconvenience for people living near the worksite.

A team of engineers specialized in acoustics conducts regular noise monitoring at the construction site to ensure that the noise level complies with city regulations and our requirements.

An information session was held on January 11, 2022. Below are the questions that were asked by participants and the answers provided by the STM team.

  • We have imposed constraints in the work contract requiring contractors to implement a noise management program. Here are some of the requirements imposed in the specifications: Noise limit imposed on the contractor via the work contract for most activities
  • Noise control program developed by a specialized acoustics firm hired by the contractor
  • An STM acoustics consultant will:
    • Supervise compliance with the contractor’s noise control program
    • Implement measures to ensure compliance for the entire duration of the worksite’s active period
  • Noise screens to be installed around certain worksite equipment
  • Adjustable-volume or white-noise backup alarms to be installed on trucks

Our worksite communications service at the STM usually publishes a newsletter for residents living near the site when we are preparing for a particular task or transitioning to the next work phase.

Vibrations will be minimal thanks to the excavation method that will be used and how close the site is to the métro tunnel. Depending on your home’s soil composition, you may feel vibrations at certain times. An expert hired by the entrepreneur will inspect potentially affected buildings before the start of the work. The buildings could also be reassessed after the work is complete. If this applies to your building, you will have already received a letter.

Trucks will enter the worksite via the Rockland overpass and Thérèse-Lavoie-Roux Avenue. The number of trucks will vary depending on the type of work being done. At the height of the digging period, there may be up to roughly 15 trucks per day. Also, a flagger will be present when trucks are driving on Thérèse-Lavoie-Roux to ensure cyclist and pedestrian safety.

Yes, our worksite has been coordinated with that of the school.

Once the work is complete, the MVS will comply with all City of Montréal noise by-laws. Huge noise suppressors will mitigate the noise from the fans, installed below ground level, to ensure quiet for residents living nearby. The new MVS will make no more noise than the one currently in operation at the same site.

Learn more about the project

A mechanical ventilation station is a large infrastructure located between two métro stations that is equipped with two powerful fans designed to extract hot air from the métro system through inlets fitted with air vents. Ventilation stations built for the original métro system extract around 60,000 cubic feet of air per minute, while the new ventilation systems extract around 240,000 cubic feet per minute. Huge noise suppressors mitigate the noise from these fans to ensure quiet for residents living close to a ventilation station.

  1. Comfort ventilation: Regulates the ambient temperature and supplies fresh air for transit users by exchanging air from the outside with air inside the métro network.
  2. Night-time ventilation: Ensures a supply of fresh air for night workers carrying out routine maintenance.
  3. Emergency ventilation: In the event of an incident, controls smoke and provides a safe evacuation route for passengers via the nearest métro station and ensures unobstructed access for emergency first responders.

No. Once the ventilation station is operational, the noise it emits will comply with municipal by-laws. The fans are installed below ground and equipped with powerful noise suppressors. The level of noise generated by the ventilation station will remain in compliance with municipal by-laws, even when the ventilation station is operating at full capacity, which is unusual. The station’s noise level will be comparable to that of a household dishwasher. In fact, it will be so low that normal conversation or ambient noise could easily cover it.



For more information on mechanical ventilation stations, visit the page in the Major Projects section.
